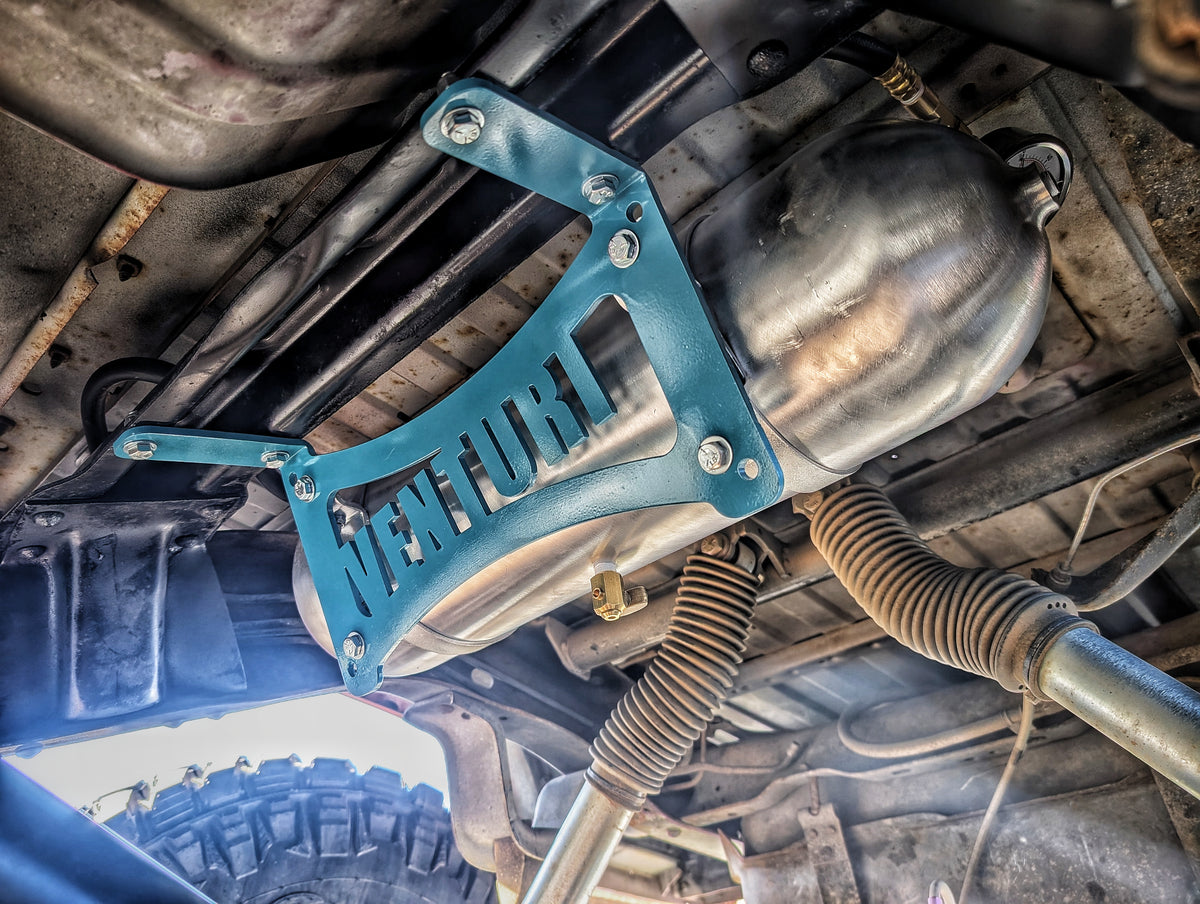

Stealth Air System

The Stealth Air System is a CAD-designed onboard air mounting solution built specifically for GM K5 Blazers.

The system uses separated mounting points and flexible hose connections rather than rigid plumbing. This allows for normal frame flex—something 1980s GM frames are well known for—and helps prevent long-term stress and reliability issues that can come from hard-mounted, rigid air systems.

Everything is tucked up, protected, and out of the way, while still being serviceable and expandable.

Construction & Design

• CAD designed specifically for the K5 Blazer frame

• Plasma-cut 3/16" steel construction

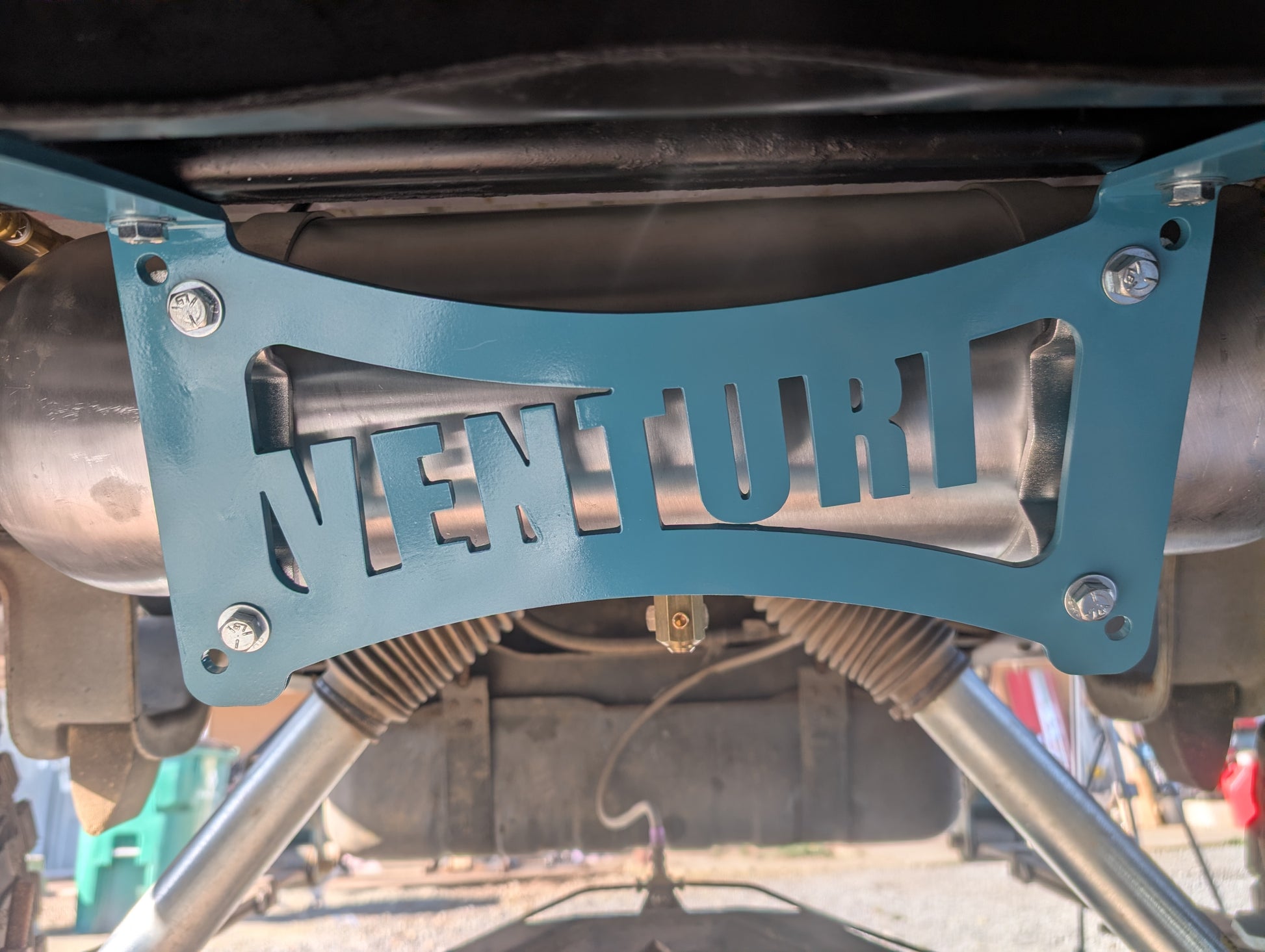

• Between-the-rails tank mounting

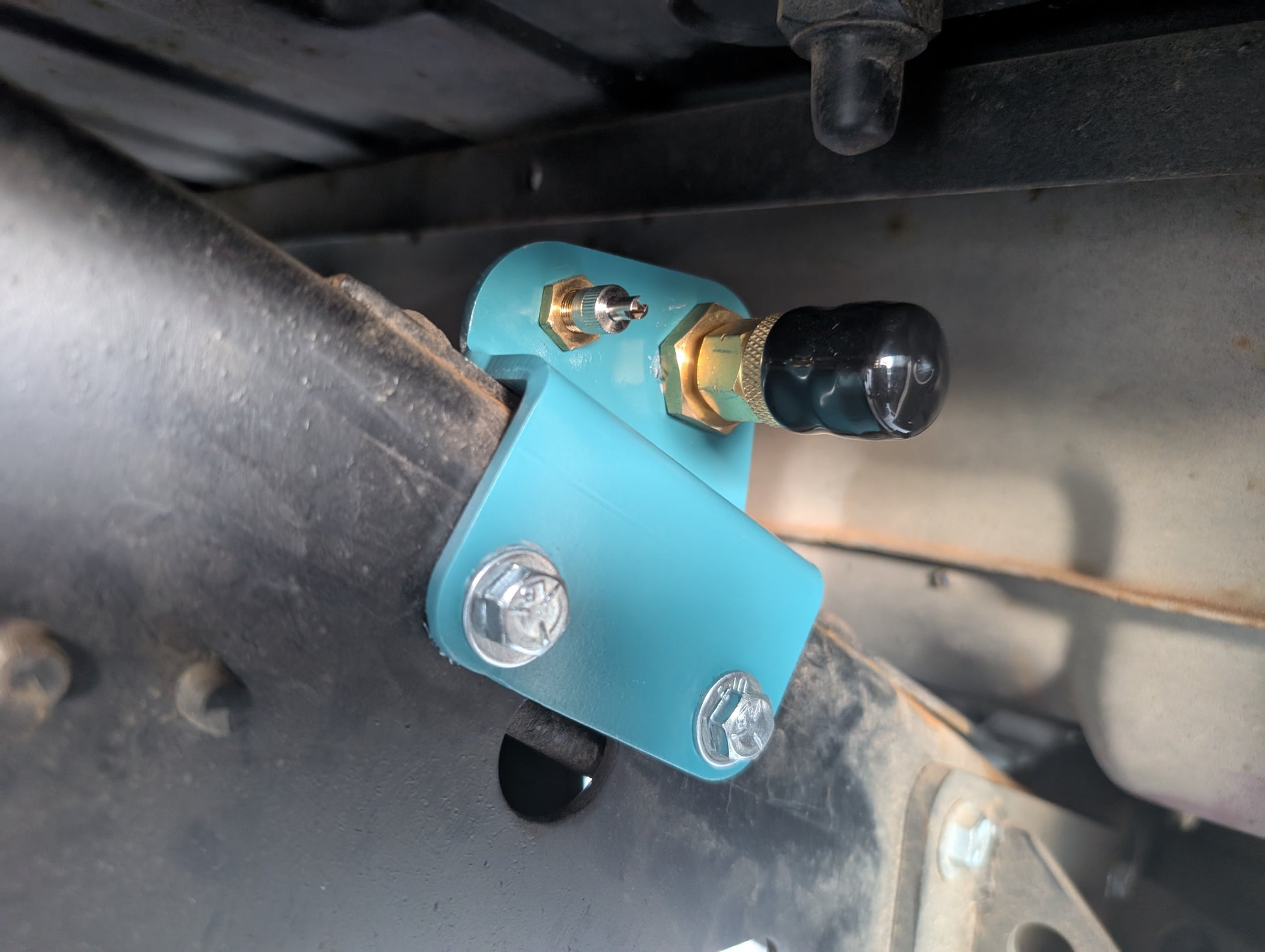

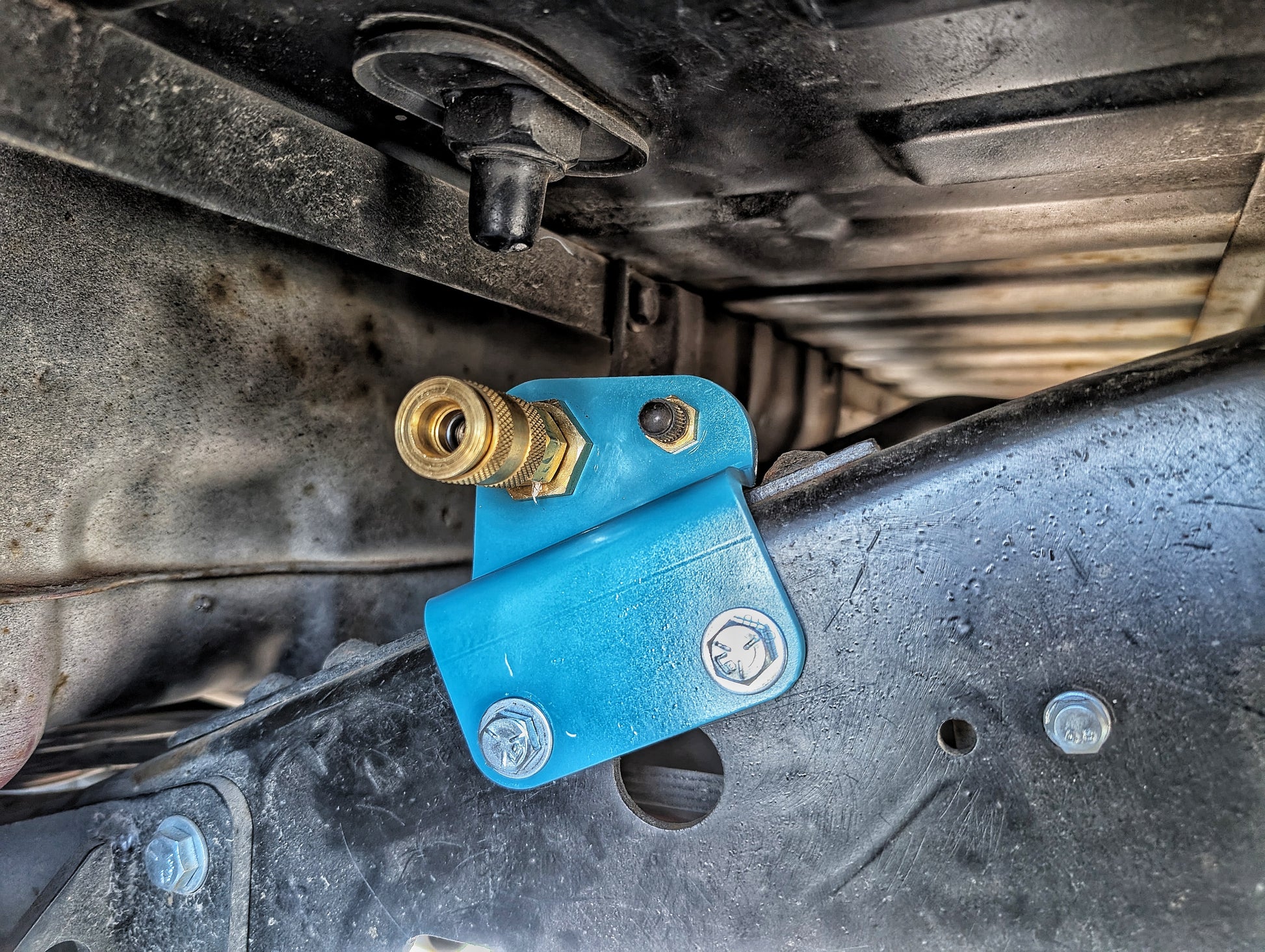

• Separate frame-mounted plates for air coupler and Schrader valves

• Flexible hose connections to accommodate frame flex

Available Options

Brackets Only

For builders who want to source their own components.

• Stealth Air main mounting bracket

• (2) frame-mounted plates for:

  • Air coupler

  • Schrader fill valve

• Includes air coupler adapters and shrader valves

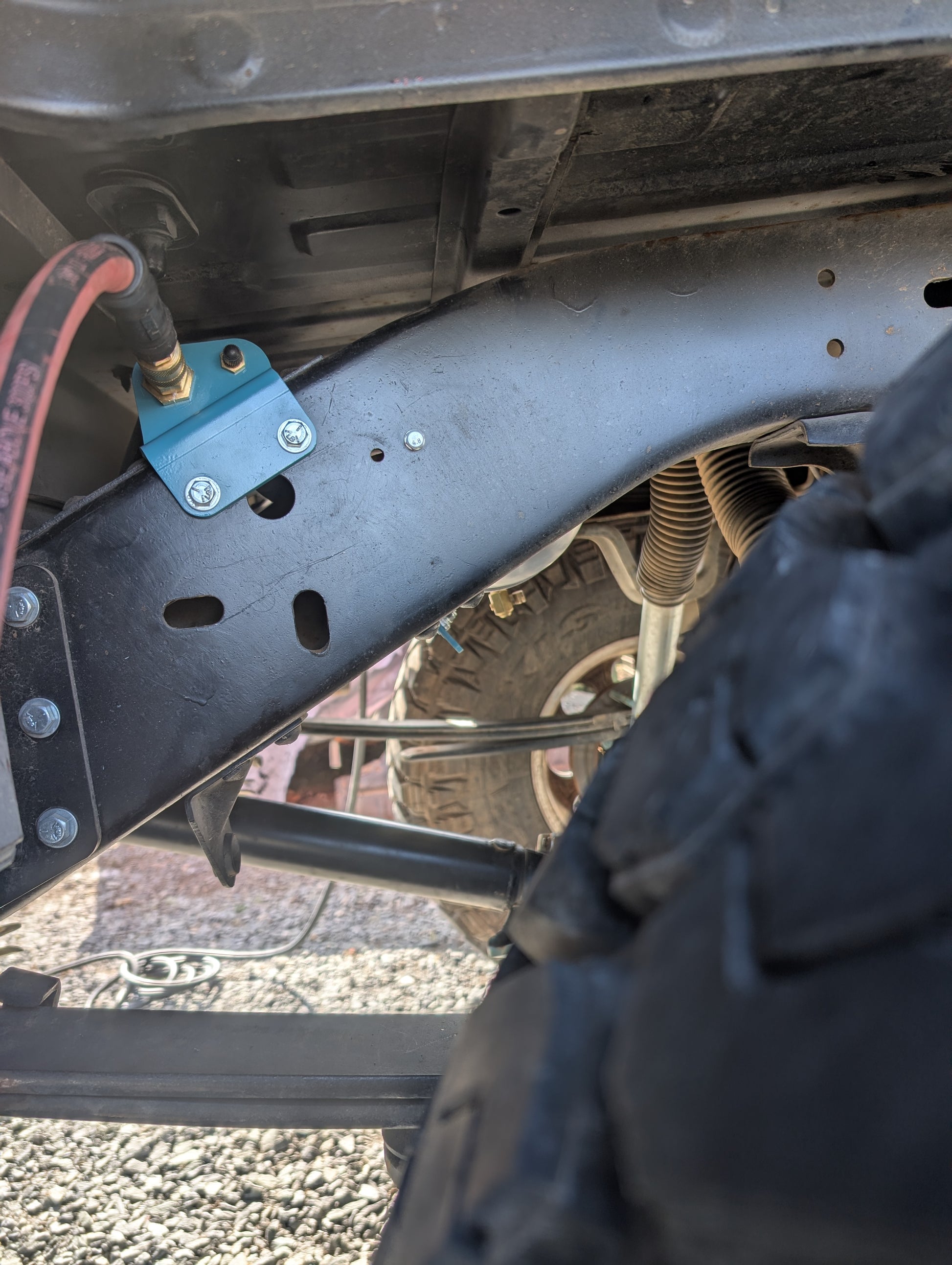

• Mounts inside the rear wheel well on the frame

• Customer supplies all air components, fittings, and hose

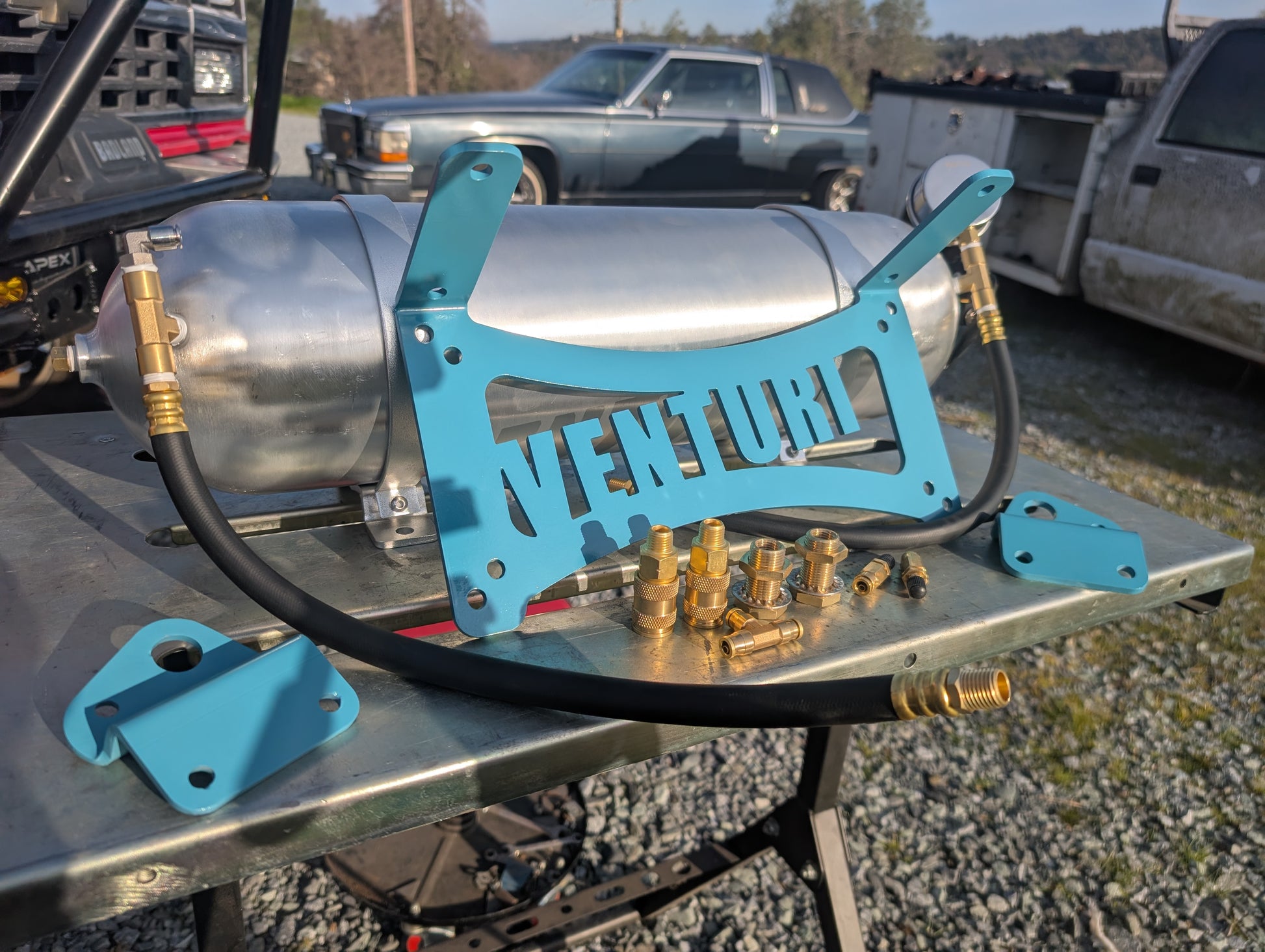

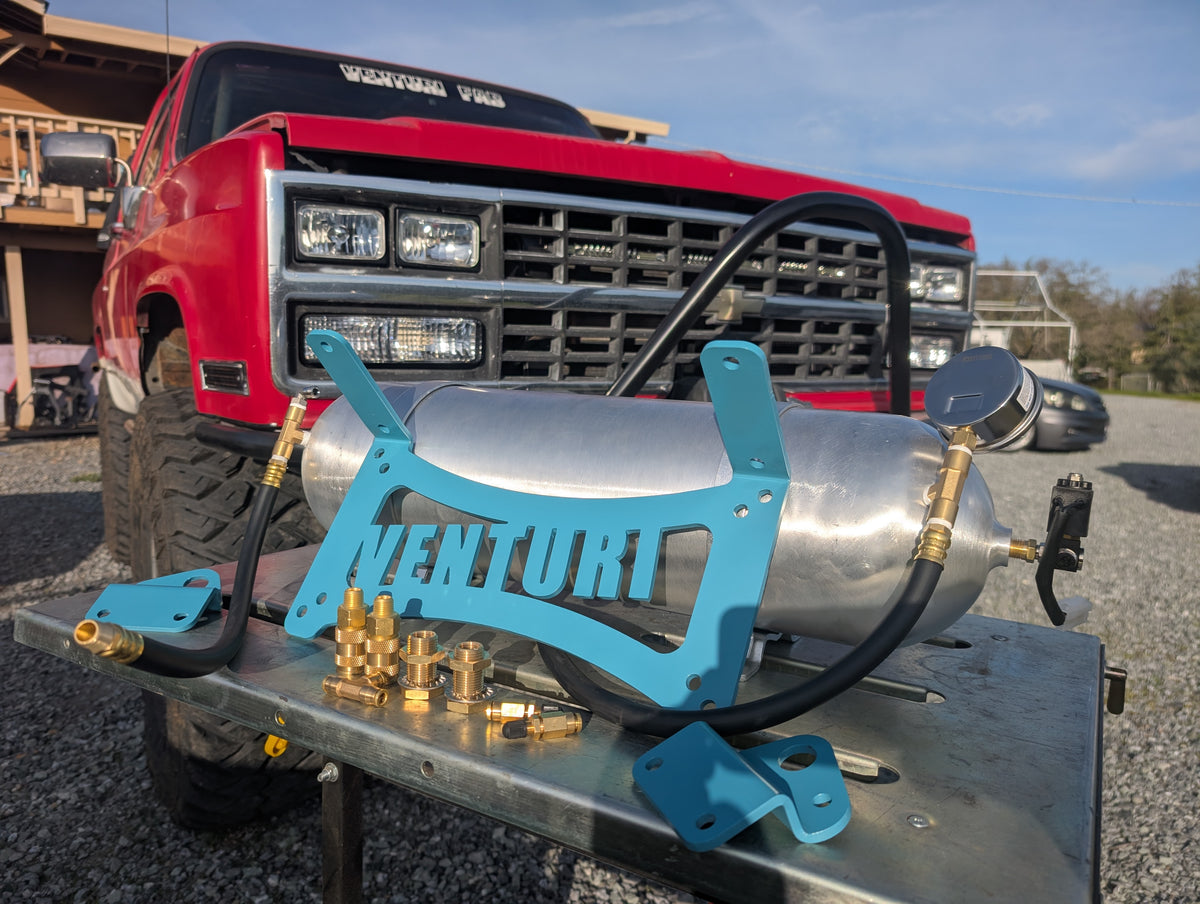

Stealth Air System — Pro Kit

A complete onboard air setup with everything included.

• Stealth Air main mounting bracket

• (2) frame-mounted plates for air coupler and Schrader valve

• 3.7-gallon spun aluminum air tank

• Five ¼" NPT ports for expandability

• Dual 5 in 1 universal air chucks (one per side)

• Schrader fill valves on both sides

• Flexible air hose connections

• All required hardware

• Brass and stainless steel fittings only

High-quality fittings cost more up front, but they pay for themselves by not failing when you need them most.

Fitment

• GM K5 Blazer only
